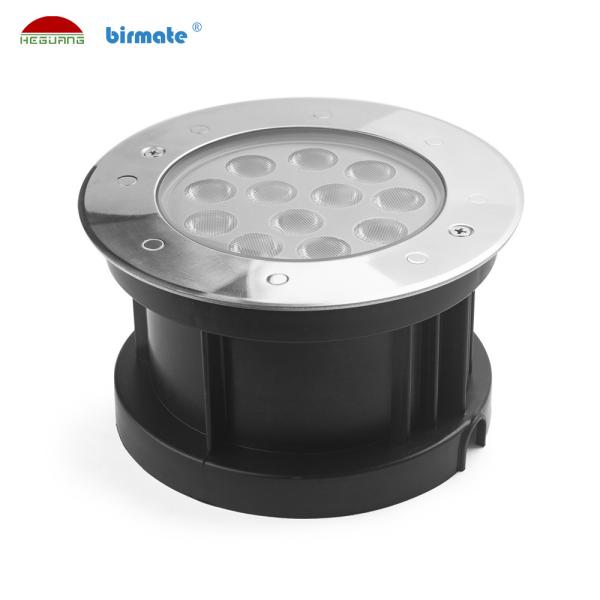

12W DC24V 316L Recessed underwater lamp led Underwater lighting
LED Recessed Underwater Light Features:
1. SS316L material,lamp body thickness:0.8mm,surface ring thickness:2.5 mm；
2. Transparent tempered glass,thickness :8.0mm；
3. VDE rubber cable ,cable length :1M;
4. IP68 structure waterproof;
5. Recessed installation;
6. standard DMX512 design,common standard DMX512 controller,DC24V input power supply.
7. SMD3535RGB(3 in 1)3W high bright LED chips
8. Beam angle:15°/30°/45°/60°；
9. 2 years warranty
1. Patent design RGB 100% synchronous control,max connect with 20pcs lamps(600W),super
good anti-interference ability
2. Various RGB control method for option : 100% synchronous control,switch control,external
control,wifi control,DMX control
3. Professional testing method :deep water high pressure test,LED aging test,electrical test,etc
4. Customized Logo silk printing,color box,user manual acceptable
5. High bright LED chips,long lifespan
6. 2-3mm aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity
7. All products succeeded in 20m deep water and high pressure testing before delivery
| Model | HG-UL-12W-SMD-R-D |
| Electrical | Voltage | DC24V |
| Current | 500ma |
| Wattage | 12W±10% |
| LED | LED chip | SMD3535RGB(3 in 1)1WLED |
| LED QTY | 12PCS |
| CCT | R:620-630nm,G:515-525nm,B:460-470nm |
| Lumen | 480LM±10％ |
| Certification | FCC,CE, RoHS,IP68,IK10 |
Recessed underwater lamp All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
FAQ
How many pieces of lamp can connect with one RGB synchronous controller?
It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous
controller is 1 pcs, amplifier is 8pcs.
Why choose your factory?
We in led pool lighting over 10 years, iWe have own professional R&D and production and sales
team.we are the only one China supplier who is listed in UL certificate in Led Swimming pool light industry.
Do you accept the OEM&ODM?
Yes,OEM or ODM service are available.
May I get samples to test quality and how long can I get them?
Yes, quote of sample is same as normal order and can be ready in 3-5 days.
What is the MOQ?
NO MOQ ,the more you order ,the cheaper price you will get
Can you accept small trial order?
Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
